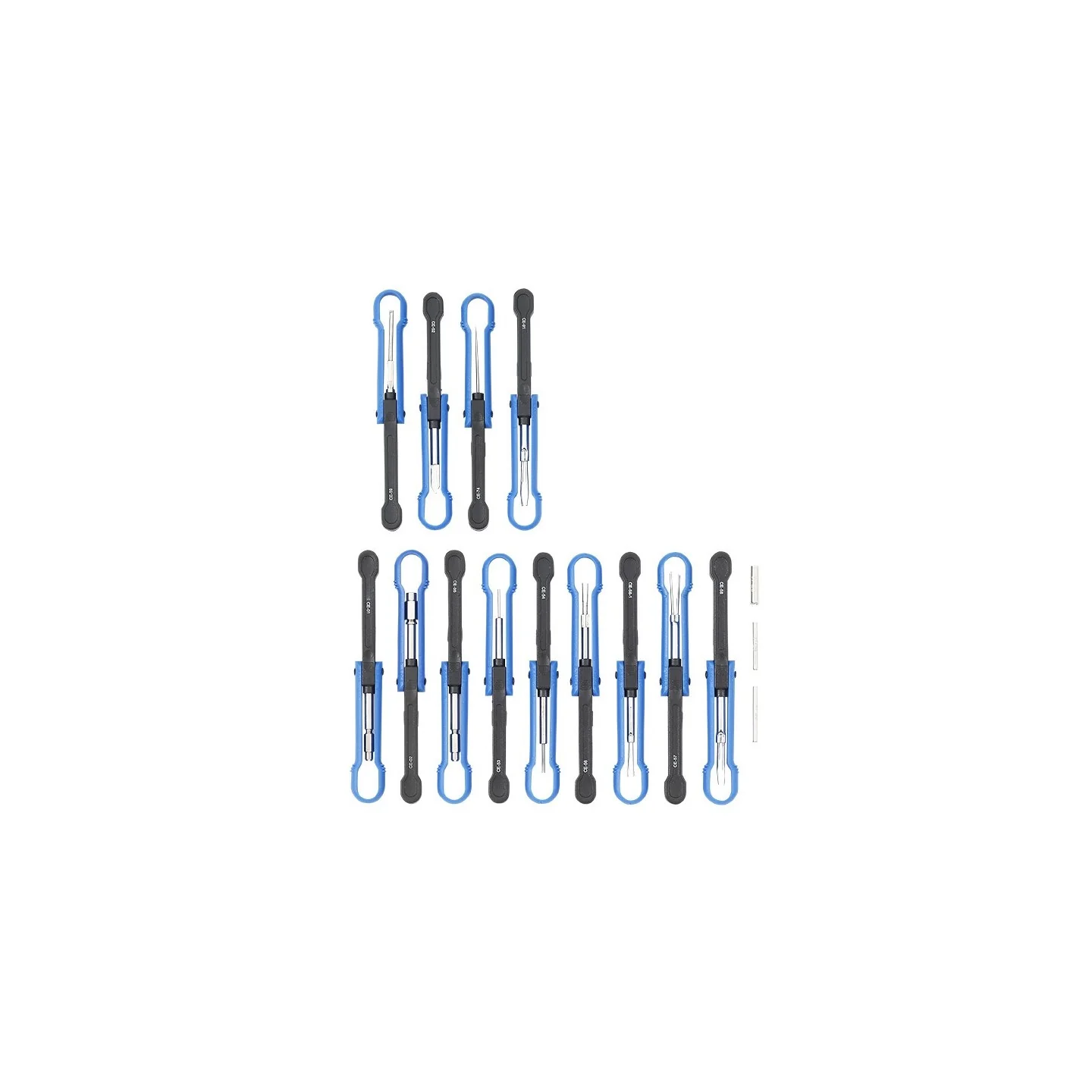

Terminal release tool set 16-pcs.

- These tools are spring loaded to assist the removal on Citroën, Peugeot and Renault vehicles
- Simply pull the tool and bend, releasing the side locking slot
- For damage free releasing of plug type connectors with folding/sheaths to protect the user and the fine precision tips

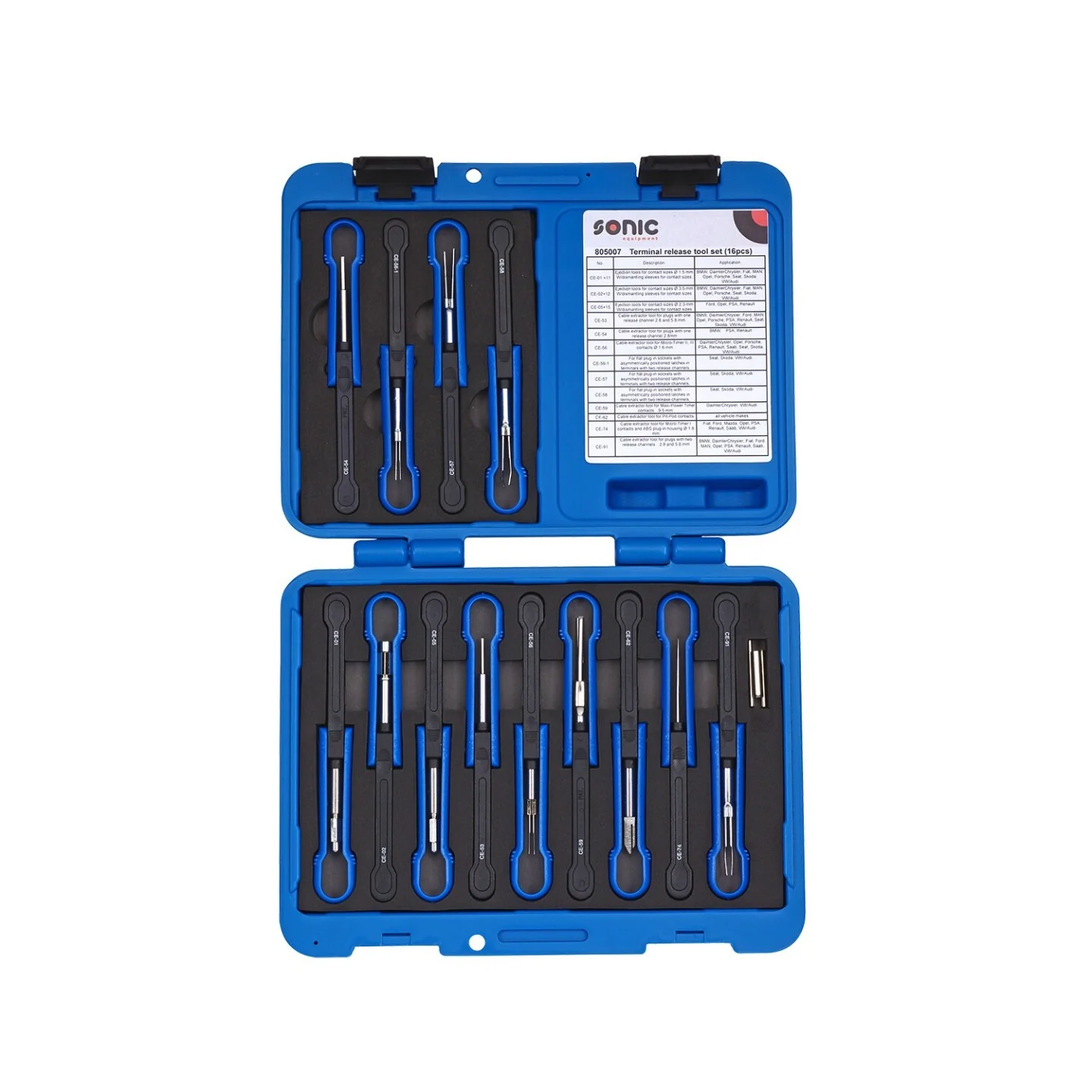

- Blow mould case supplied with positional insert for easy identifi cation of missing tools

805007-1 CE-01, CE-11
Ejection tools for contact sizes Ø1.5mm with dismantling sleeves for contact sizes
BMW, Daimler, Fiat, MAN, Opel, Porsche, Seat, Skoda, VW/Audi

805007-2 CE-02, CE-12
Ejection tools for contact sizes Ø3.5mm with dismantling sleeves for contact sizes
BMW, Daimler, Fiat, MAN, Opel, Porsche, Seat, Skoda, VW/Audi

805007-3 CE-05, CE-15
Ejection tools for contact sizes Ø2.3mm with dismantling sleeves for contact sizes
Ford, Opel, PSA, Renault

805007-4 CE-53
Cable extractor tool for plugs with one release channel 2.8 and 5.8mm
BMW, Daimler, Ford, MAN, Opel, Porsche, PSA, Renault, Seat, Skoda, VW/Audi

805007-5 CE-54
Cable extractor tool for plugs with one release channel 2.8mm
BMW, PSA, Renault

805007-6 CE-56
Cable extractor tool for micro-timer II, III contacts Ø1.6mm
Daimler, Opel, Porsche, PSA, Renault, Saab, Seat, Skoda, VW/Audi

805007-7 CE- 56-1
For flat plug-in sockets with asymmetrically positioned latches in terminals with two release channels
Seat, Skoda, VW/Audi.

805007-8 CE-57
For flat plug-in sockets with asymmetrically positioned latches in terminals with two release channels
Seat, Skoda, VW/Audi

805007-9 CE-58
For flat plug-in sockets with asymmetrically positioned latches in terminals with two release channels
Seat, Skoda, VW/Audi

805007-10 CE-59
Cable extractor tool for Maxi-Power Timer contacts 9.5mm
Daimler, VW/Audi

805007-11 CE-62
Cable extractor tool for Pit-Pod contacts
All vehicle makes

805007-12 CE-74
Cable extractor tool for Micro-Timer I contacts and ABS plug-in housing Ø1.6mm
Fiat, Ford, Mazda, Opel, PSA, Renault, Saab, VW/Audi

805007-13 CE-91
Cable extractor tool for plugs with two release channels 2.8 and 5.8 mm
BMW, Daimler, Fiat, Ford, MAN, Opel, PSA, Renault, Saab, VW/Audi
